LV Foil Winder Transfomer Foil Winding Machine
Quick details of transformer foil winding machine BRJ600-2
l Maximum foil width 600mm
l Foil material ID 500mm
l Foil material OD 1000mm
l Winding speed 26rpm
l Winding power 11kw
l Automatic TIG welding
l Two foil decoilers
l One year warranty
Description of transformer foil winding machine BRJ600-2

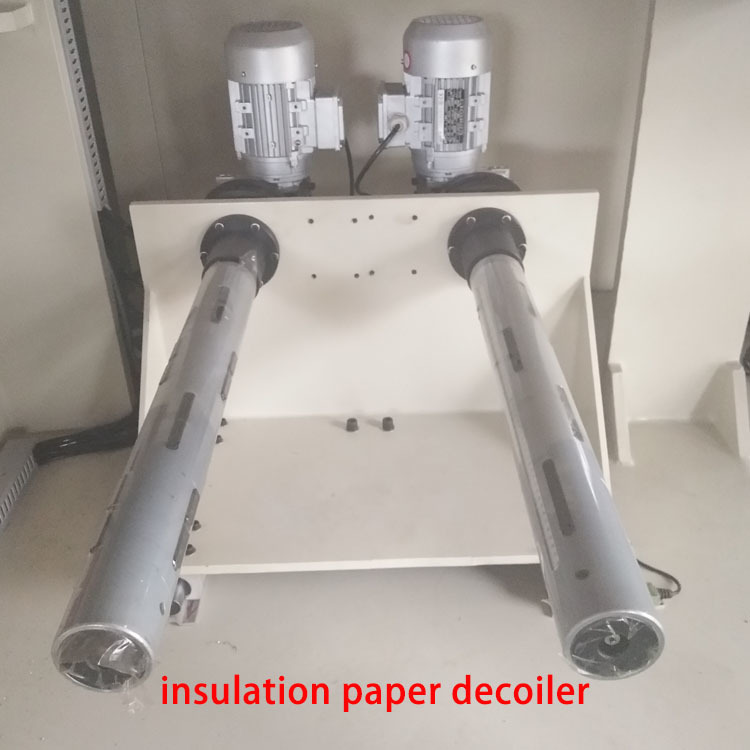

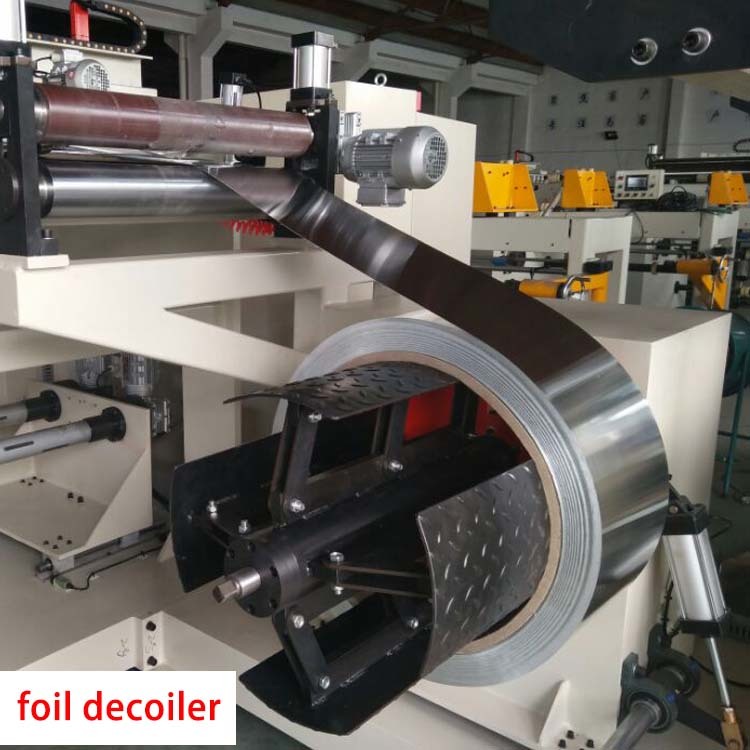

Transformer foil winding machine BRJ600-2 is a special conductor foil winder equipment. The transformer foil winding machine can wind both copper foil and aluminium foil, which is mainly used to make cast resin transformer coils and other similar products. With two foil decoilers and two insulation decoilers, the transformer foil winding machine can handle one or two layers of foil and one or two layers of insulation paper. The transformer foil winding machine is provided with photoelectric sensors for correcting the position of foil to guarantee the foil edge neat when the foil winding machine is winding foil. With HMI and control system based on PLC, the transformer foil winding machine can be operated easily and intuitively.
Main parameters of transformer foil winding machine BRJ600-2
Typical standard specifications of transformer foil winding machine BRJ600-2 are shown below and the foil winding machine can also be manufactured as requested.
|
Maximum Foil Width: |
600mm |
|
Conductor Foil Material OD.: |
Ø1,000mm, maximum |
|
Conductor Foil Material ID.: |
Ø500mm |
|
Number of Conductor Decoiler: |
2 pcs |
|
Winding Power: |
11KW |
|
Max. Winding Speed: |
26 Rpm |
|
Insulation Decoiler: |
2 pcs |
|
End-fill Strip Feeder: |
6 pcs |
|
Edge Alignment System: |
Photoelectric sensing |
|
Counting Turns Range: |
0 ~ 9999.9 |
|
Power Supply: |
3-phase 380V 50Hz |

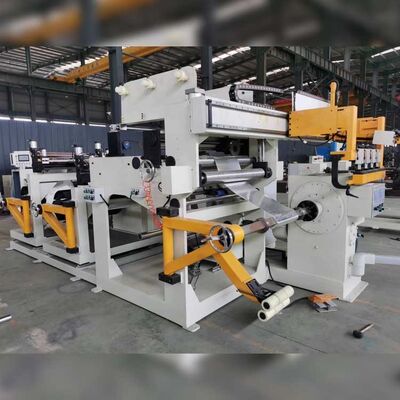

Fig 1: Transformer foil winding machine BRJ600-2's front view
Fig 2 :Transformer foil winding machine BRJ600-2
