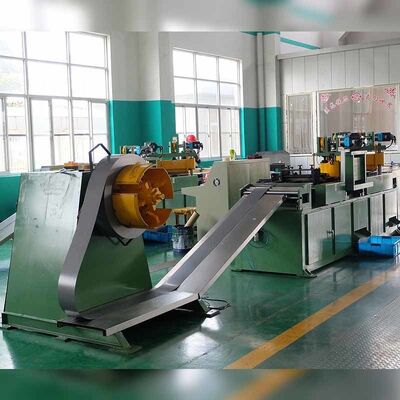

The HJX400-LLB step lap transformer core cutting machine is a professional and high-precision processing equipment dedicated to silicon steel sheet cutting. It is specially designed for cutting silicon steel strips to fabricate core legs and yokes of transformer cores.
Equipped with a mature PLC control system and HMI human-machine interface, the machine features intuitive operation and intelligent control. It supports step lap cutting technology, enabling precise processing of step-lapped core legs and yokes. With stable performance and simple operation, it meets the high-precision production requirements of transformer cores.
The following are the standard technical specifications of the HJX400-LLB transformer core cutting machine. Customized production is available to meet diverse customer processing requirements.
| Parameter | Specification |
|---|---|
| Double-end Coil Uncoiling Capacity | 1000kg per end |
| Raw Coil Inner Diameter | Φ500mm |
| Max Raw Coil Outer Diameter | Φ1200mm |
| Cutting Types | +45°, -45° and triangular cutting |
| Applicable Cutting Thickness | 0.23 ~ 0.35 mm |
| Cutting Width Range | 40 ~ 400 mm |
| Cutting Length Range | 350 ~ 9999 mm |
| Punching Diameters | Φ10mm, Φ14mm, Φ22mm (interchangeable dies) |
| Max Feeding Speed | 120 m/min |
| Cutting Angle Accuracy | ±0.05° |
| Cutting Length Accuracy | ±0.10 mm |
| Cutting Burr Height | ≤0.02 mm |
| Installed Power | 15 kw |
