Three Heads CNC Winder Equipment Automatic Coil Winding Machine
Description of automatic coil winding machine ZPX150-3
Automatic coil winding machine ZPX150-3 is a professional high effective wire coil winder equipment. With three wire guides driven by a servo motor, the automatic coil winding machine can wind three coils at the same time. The coil winding machine is provided with PLC and HMI, which makes the coil winding machine be operated easily. The coil winding machine features slow starting, smooth running, high automation, and so on.
Main components of automatic coil winding machine ZPX150-3
1. Main steel frame, it is welded with steel
2. Main winding unit, including winding motor and winding shaft
3. Automatic wire laying unit, driven by 750w servo motor
4. PLC based control system,
5. Pneumatic system
6. Servo motor
7. Foot pedal
Technical parameters of automatic coil winding machine ZPX150-3
Typical standard specifications of automatic coil winding machine ZPX150-3 are shown below and the coil winding machine can also be manufactured as requested.
|
Center Height: |
900 mm |
|
Square Shaft Size: |
40x40mm |
|
Round Wire Diameter: |
Ø0.3-4.0 mm |
|
Max. Flat Wire Size: |
3x8 mm |
|
Finished Coil ID.: |
Depends on your mold (shaft size 40*40 mm) |
|
Max. Finished Coil OD.: |
Ø400 mm |
|
Max. Each Coil Length: |
150 mm |
|
Winding Motor Power: |
4kw |
|
Winding Speed: |
0 ~ 200 rpm |
|
Winding Speed Regulation: |
Variable frequency and stepless speed regulation |
|
Control system: |
PLC |
|
Counting Mode: |
5-digit counting, |

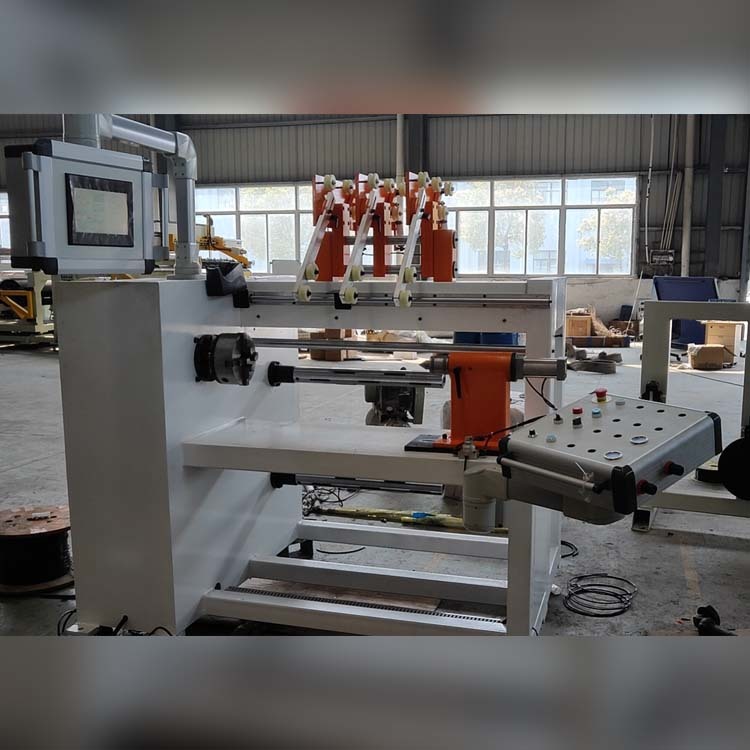

Fig 1: Automatic coil winding machine ZPX150-3's full view
Fig 2: Automatic coil winding machine ZPX150-3's wire guide
